Introduction: This article is the product of the research “Knowledge management model for decision-making through ontologies for an employment and employability observatory” developed within the ComplexUD Research Group in the Universidad Distrital Francisco José de Caldas between 2018 and 2020.

Objective: The objective of this research is the construction of a knowledge management model using ontologies of the actors involved in the employability process.

Methodology: The construction of knowledge was carried out through the creation of ontologies, which describe the conceptual components of each actor that participates in employability, since their interaction forms the proposed model.

Conclusion: It is observed that representing the actors through ontologies allows modeling the behavior between them in a way that is very close to reality, however, it must be taken into account that the components that describe the actors can change over time, so a periodic update of the model is necessary.

Originality: This document proposes original ideas regarding the definition and behavior of the actors identified in the development of the research; if the work of other authors is mentioned throughout the article, it is cited according to the norms established by its publication.

The World Bank, in its report for Latin America, points out that insertion in higher education increased between 2000 and 2013 [1]. It also shows that graduates must acquire skills and knowledge continuously, given that they are expected to constantly change jobs during the next 30 years [2]. Likewise, the trend report of the International Labor Organization (ILO) on the economic growth of Latin America and the Caribbean shows that unemployment is going to decrease slowly due to the different factors found in the labor market of each country [3].

According to Hillage, Pollard, and Britain [4], the process by which a person can quickly find a job is called employability. However, since it appeared as a concept, employability has evolved [5]. For example, the ILO addresses employability as: “transferable skills and qualifications that reinforce people’s ability to take advantage of educational and training opportunities that they are presented with a view to finding and keeping a decent job, advancing in the company or changing jobs and adapting to changing technology and labor market conditions” [6].

This has led the Pacific Alliance (PA), and the member countries to seek to improve employability indices, since it is essential for the development of the region and its inhabitants, which is observed in their vision for the year 2030 [7]. In this sense, the EMPLE-AP project has arisen. It proposes the creation of an observatory for labor insertion and strengthening employability in countries of the Pacific Alliance, in order to improve employability indices and insertion of graduates of Higher Education Institutions (HEIs) in the labor market [8].

In the proposed observatory, knowledge management is a vitally important pillar, since it creates an organization based on knowledge, which contributes to accelerating organizational development in direct line with the vision of the Pacific Alliance [9]. When proposing a model of this type, the different actors that intervene in the employability process must be taken into account . For this reason, this article proposes a knowledge management model for the EMPLE-AP project, where an approximation is proposed of the behavior of the observatory, through the relationships that exist and the knowledge shared between the actors of the employability process.

The concept of employability has changed over the years and with it, the way of recognizing whether a person is employable or not [10]; the COVID-19 pandemic has made these concepts even more difficult to evidence since many of the activities have moved to the virtual field [11][12]. Within the development of a country, the ability to acquire a job in the youth acquires great importance, because young people will be the main workforce, however, it must be taken into account that in institutions with virtual education, people in an older than average age range who also seek to participate in employability are graduating, in both cases, the current pandemic conditions have increased unemployment of recent graduates [13]. Whatever the case, the strengthening of soft skills that contribute to the improvement of a person’s employability indexes is relevant [14][46]. Additionally, studies suggest that recent graduates, upon leaving HEIs, do not have the technical and professional skills demanded by the labor market, which makes it difficult for developing countries to compete [15]. The relevance of political reforms in the labor market is also observed, which are carried out in order to contribute to the employability and economic improvement of the country [16][42] . According to the above, employability is defined in a general way as the “country’s capacity to articulate actors (State, HEI, Society, Industrial) that allows for the generation of competences and attitudes in the graduate, as well as increasing their probabilities to create or find a job, keep it and move between the roles of the same organization, which satisfies their professional, economic, promotion and development needs throughout their life, which is materialized in the contribution of value that is made to the employer and the society ” [17].

The use of knowledge management in organizations according to different authors [18][19][40], is applied with the purpose of capturing and integrating tacit and technical knowledge, which make a person employable, preserving and sharing knowledge between the members of an organization; highlighting the importance of the collaboration of the different actors involved for the generation and use of knowledge in the current technological revolution [20].

Within knowledge management there are stages as defined in [21], where it begins by defining the cycle of this process [22], then the knowledge management model is defined [23], where it is necessary to define a conceptual framework of work with the one that can be operated. There are several frameworks that stand out because, “they have a holistic approach to knowledge management seeking to be comprehensive and take into account people, processes and organization, and technological dimensions” [24] . These models stand out because they can have an epistemological approach, differentiating between individual knowledge and social knowledge [25]. Others focus on capturing the tacit knowledge of individuals in an organization [26], or because they look at the organization as a complex adaptive system [27], whose agents are those who generate knowledge through understanding, the creation of new ideas, problem solving and decision-making [43][45].

In knowledge management, modeling tools are used to capture and organize people’s information. Specifically, the use of ontologies is proposed since these help to conceptualize, in a formal and explicit way, what one desire s to model, reflecting a shared domain of the concept that seeks to be defined [28]. Although the process of construction of an ontology is more detailed, broadly what is sought is to take the definition of the concept to be modeled, extract the nouns and predicates, which become classes and properties that will make up the ontology [29]; This is done by means of markup languages [30], to characterize the relationships that are generated between classes and the specification of their instances.

In this sense, there are different ways of applying knowledge management within an organization [24][41] [44], among which is the use of methodologies that define the development stages of the model, described through the construction of ontologies [31] [18] which, as in the case of [32], lead to the construction of web portals, where it is worth highlighting their implementation in the field of an employment and employability observatory.

Consequently, and in order to manage knowledge from and to graduates, the creation of a knowledge management model is proposed, using ontologies to describe the behavior of the actors involved in employability. The purpose of creating these ontologies is to have a clear description of the different entities that interact in an employment observatory, holistically capturing the knowledge of the actors that the observatory will study. It should be noted that the proposed model has limitations in the variables studied; if employability is observed as a complex problem, it would have to be conditioned with more variables in the ontology, as shown in [33].

In order to present, in detail, the characteristics of the proposed proposal, the following topics are developed below. Section 2 describes the methodology used to define the ontology and its subsequent construction. Section 3 shows the results of the ontological proposal, which brings together the different descriptions and behaviors of the actors involved; the ontology is then validated by performing a test with the instantiation of the different actors. Section 4 discusses the proposal and the test results of the previous section, and finally, Section 5 presents the conclusions.

This article describes the construction of the knowledge management model based on the proposal of [18]; however, Activity 4 was omitted, given the difference in context with respect to what is proposed here, being necessary to renumber the activities.

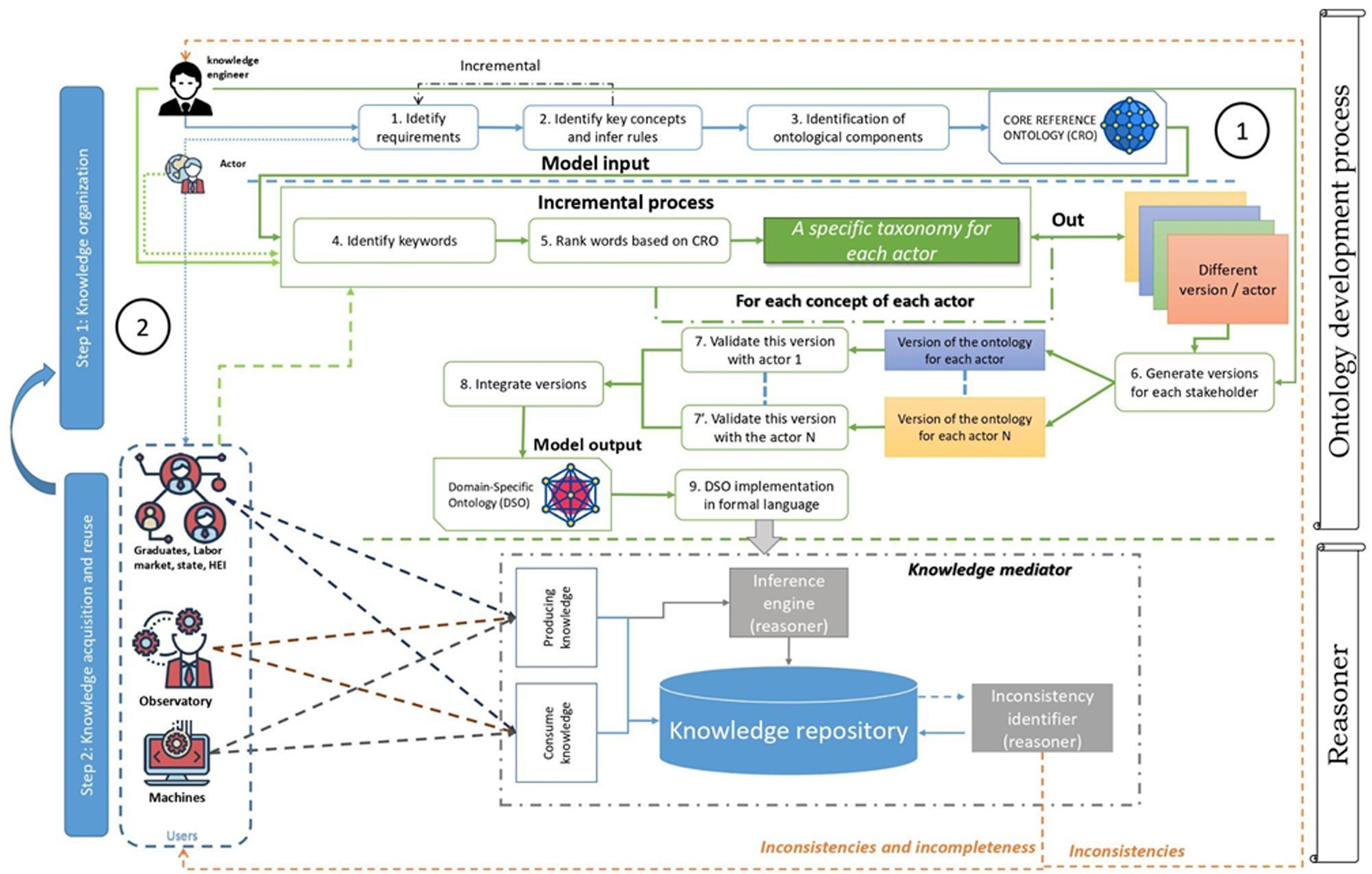

This two-step methodology begins with the “Organization of knowledge”, which is made up of several activities, the first is to identify requirements given the expertise of the knowledge engineer, as shown in Figure 1; for this case, such requirements were related to the components of the definition of employability. Subsequently, the key concepts and the corresponding rules are identified within an incremental process together with the first activity; in this case, concepts such as labor market, IES, state and graduates were defined. For the model presented here, the characteristics of each of the actors, as well as their interaction and with the observatory, were determined. In this way, the ontological base or CRO (Core Reference Ontology) is generated, taking the keywords and classifying them to produce a specific taxonomy . In this sense, each concept was characterized as follows: the state, through which policies regulate the other actors; the HEIs, observing the organizational distribution of the faculties, institutes, research units, and departments attached to them; the labor market, taking into account employment agencies, and studies on entering the productive sector [3] [17]; graduates, made up of intrinsic data (hard and soft skills) and extrinsic data (courses, studies and experience); and finally, employment observatories that are already operating in different countries [31][32]. Then, for each of the actors, a version is generated and validated, finally integrating the one that best fits its description, giving rise to the domain specific ontology or DSO (Domain Specific Ontology).

Step two, with which the construction of the ontology is completed, is called “acquisition and reuse of knowledge”, starting with the implementation of the DSO, which is deployed through the tool used (knowledge mediator), which is composed of: the inference engine (ontological reasoner), the repository, and the inconsistency identifier. At this point, it is worth mentioning that the knowledge mediator used is Protegé [34]. For the production and construction of knowledge, the users of the mediator are established, which are people outside the observatory who may belong to groups of graduates, be part of the labor market, state institutions or HEIs. Finally, the machines that will serve to enter and consult data, with the purpose of acquiring and sharing knowledge, are taken into account.

At the end of this second step, the inconsistencies and incomplete aspects identified by the mediator are addressed, where the representation of the users must be integrated into the adjusted knowledge, to provide new details and corrections to the ontology, which will have a direct impact on the model [35].

It should be clarified that, for the purpose of this article, the participation of the actors mentioned in the first step of the methodology is not counted on, because the knowledge engineer is the one who has an overview of the observatory, based on the theoretical definitions found. In the literature, in the same way, this first version only covers the validation of the model [36].

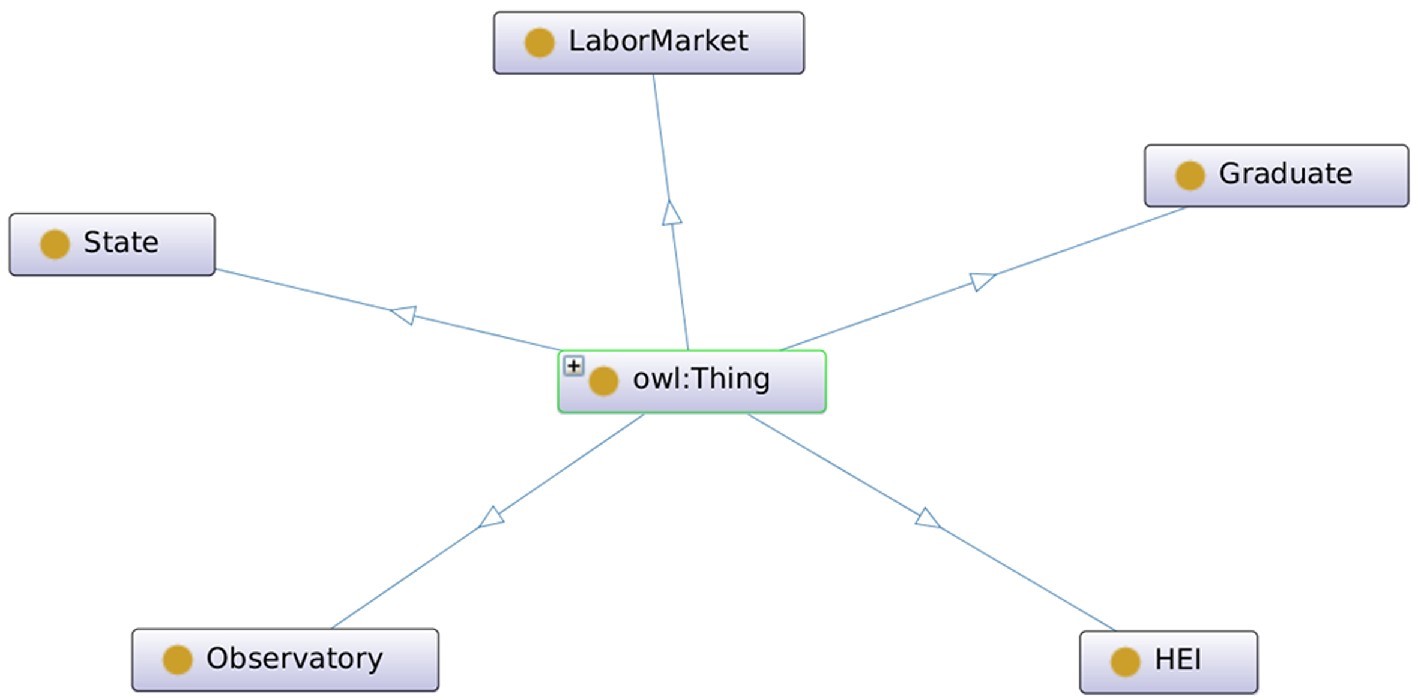

The proposed ontology (CRO) is made up of five entities as shown in Figure 2:

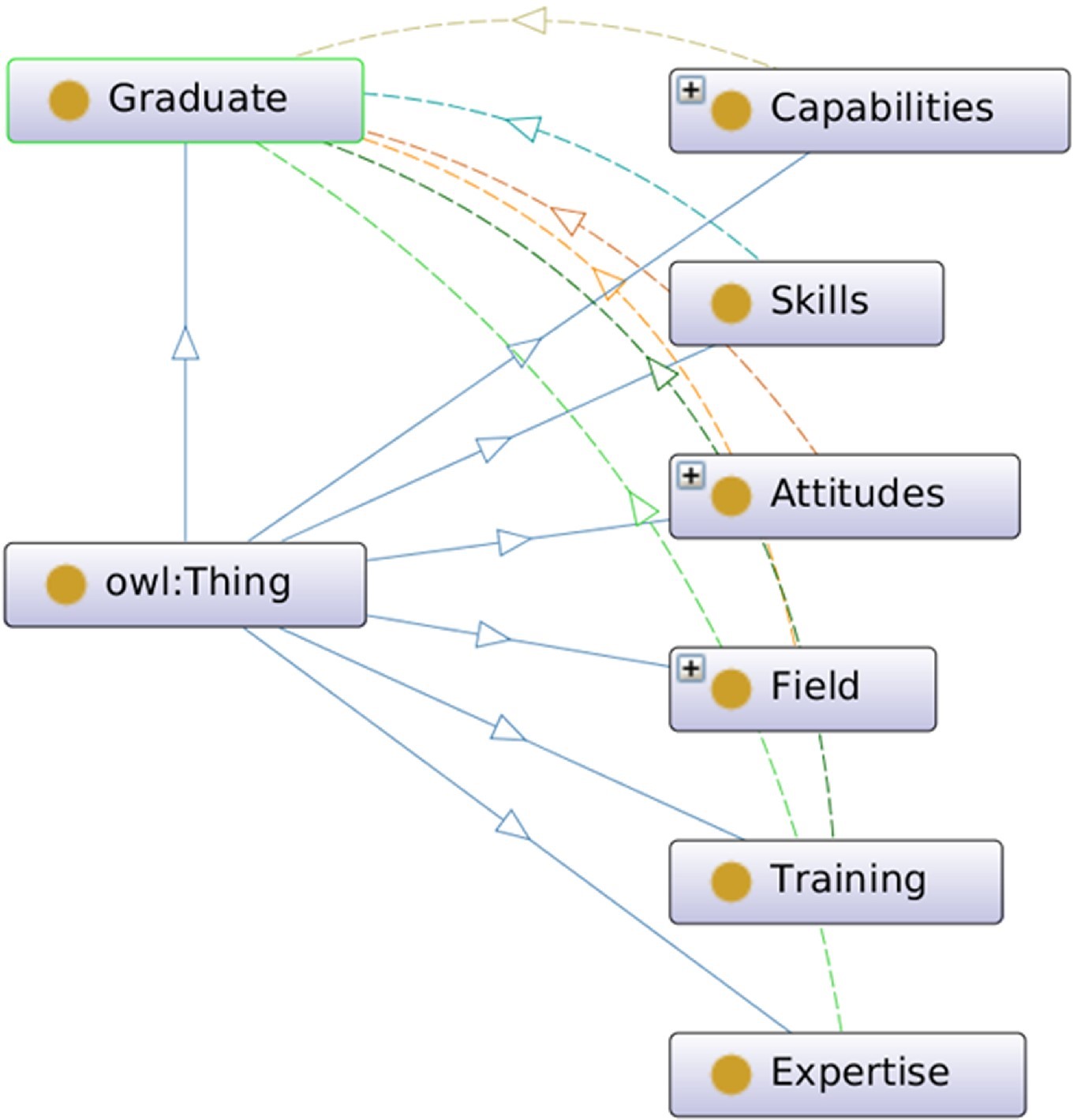

The graduate (as shown in Figure 3) represents a person trained in a specific area (engineering, science, pedagogy, humanities, arts, etc.), possessing skills that allows them to practice in that area. Throughout their training at HEIs they acquire skills (hard or soft), which they will use in professional practice; furthermore, they have a series of attitudes that predispose him to carry out his activities. Likewise, they can count on some work experience that will affect the aforementioned variables.

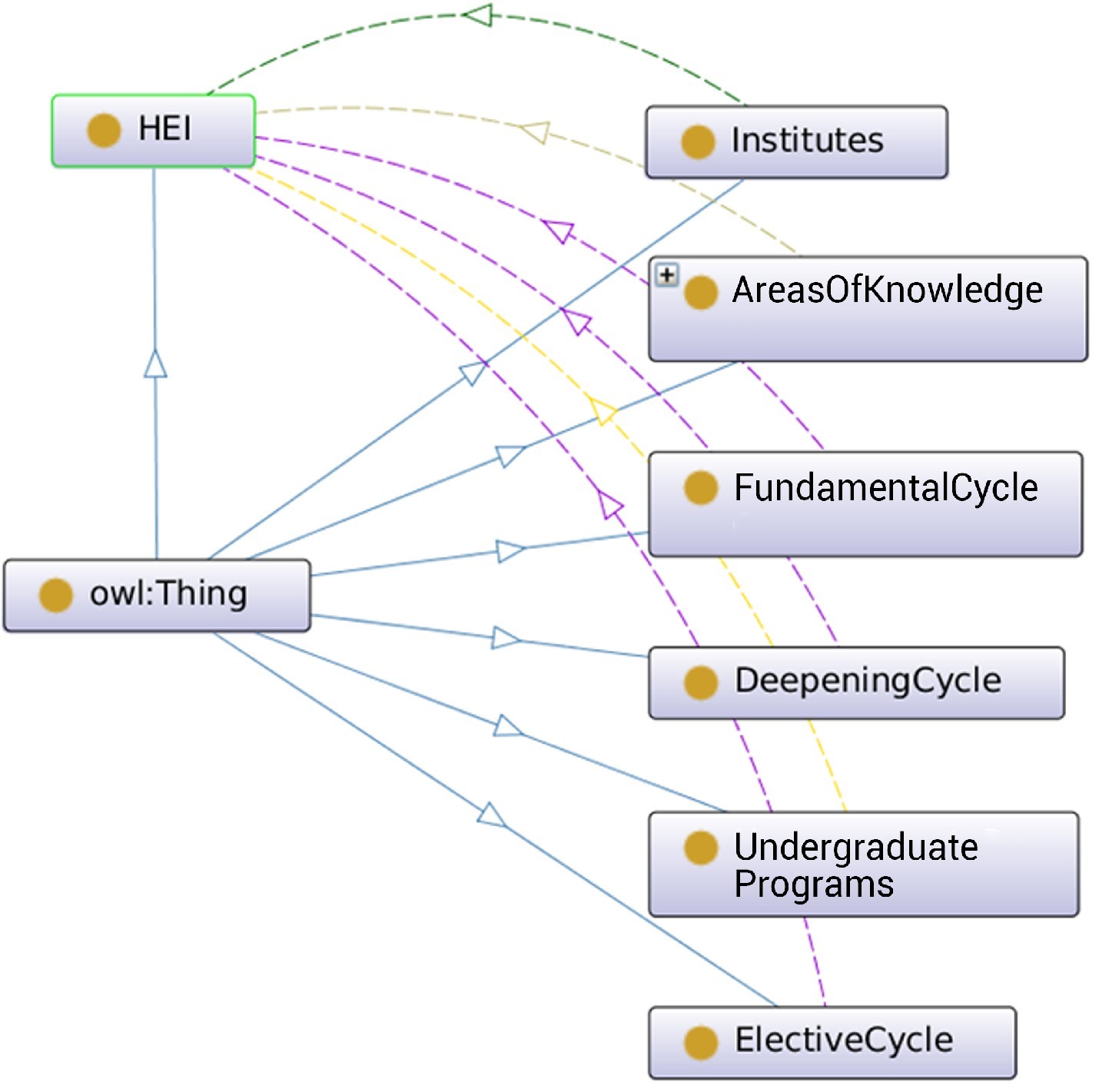

The HEIs, in order to train future graduates, offer study programs which are classified into areas of knowledge (engineering, sciences, humanities, pedagogy, arts, etc.). In turn each area can be divided into training cycles (foundation, deepening and optional). Finally, they can have institutes, whether for research, extension, etc., as evidenced in Figure 4.

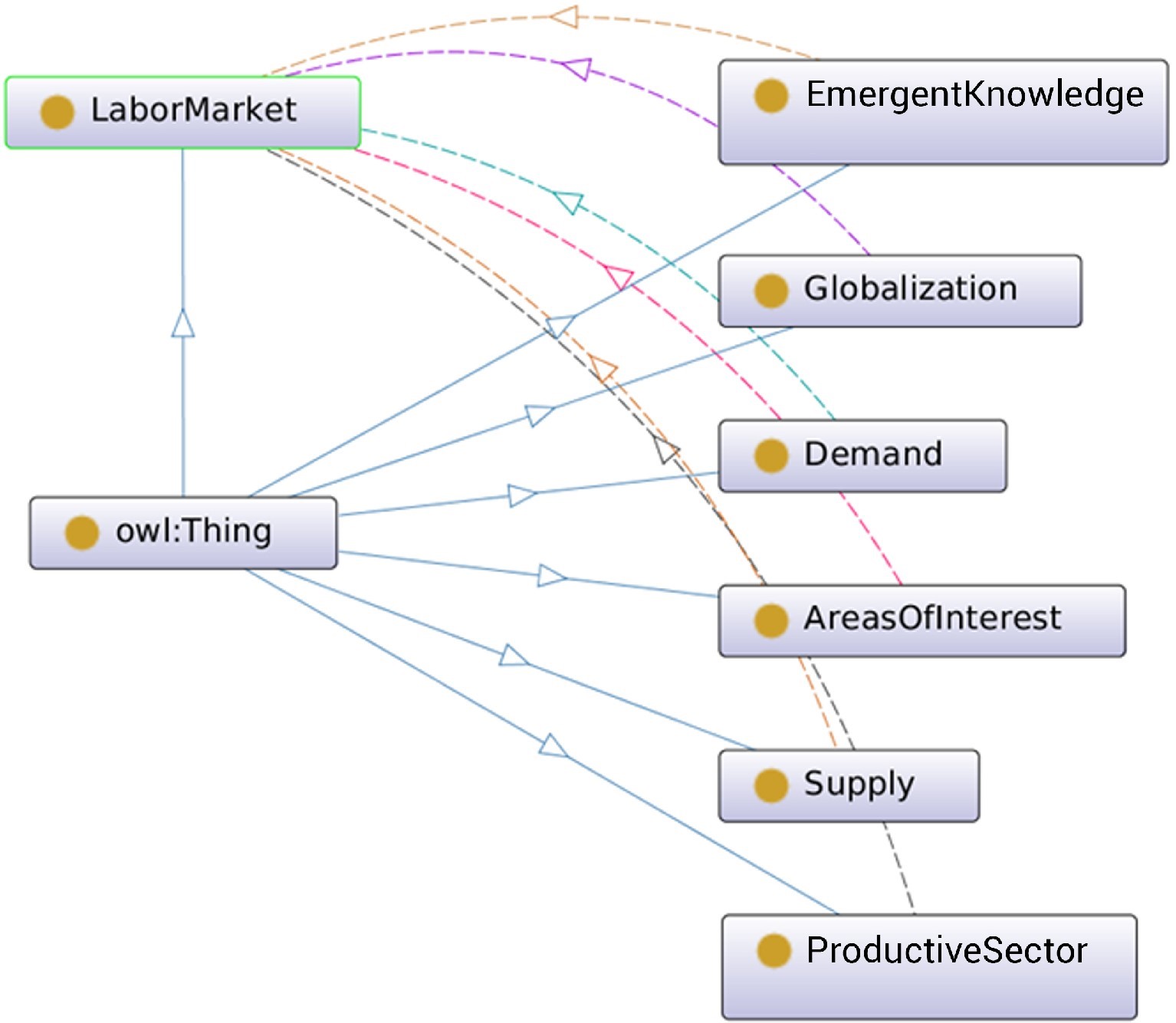

The labor market (Figure 5) is where graduates interact with companies, which may belong to one of two different productive sectors (public or private) . In this market, a supply and a demand are handled, which the HEIs will have in consideration when proposing adjustments in their academic programs . In addition, it takes into account how globalization and emerging knowledge affect the market through research, development and innovation.

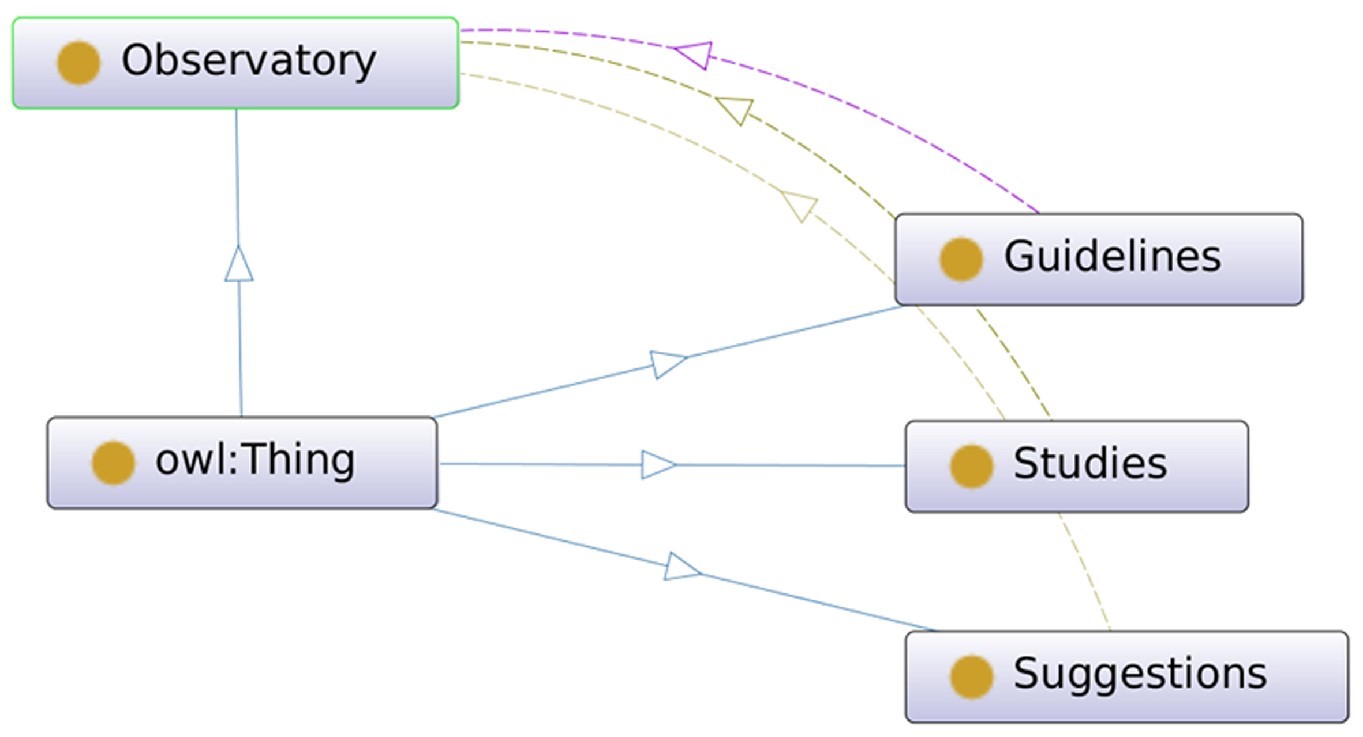

The observatory is an independent entity that brings together the other actors and is in charge, among other things, of analyzing their interaction with them. Likewise, it generates guidelines, suggestions and studies to guide the decision-making of the rest of the actors, as presented in Figure 6.

The state controls, through its national policies, the other entities proposed in the ontology (see Figure 7), generating guidelines and programs to regulate and encourage education, as well as guidelines on labor and economic matters that directly affect the labor market, HEIs and graduates.

By defining the object and data constraints, different preliminary results can be obtained in the functionality of the ontology.

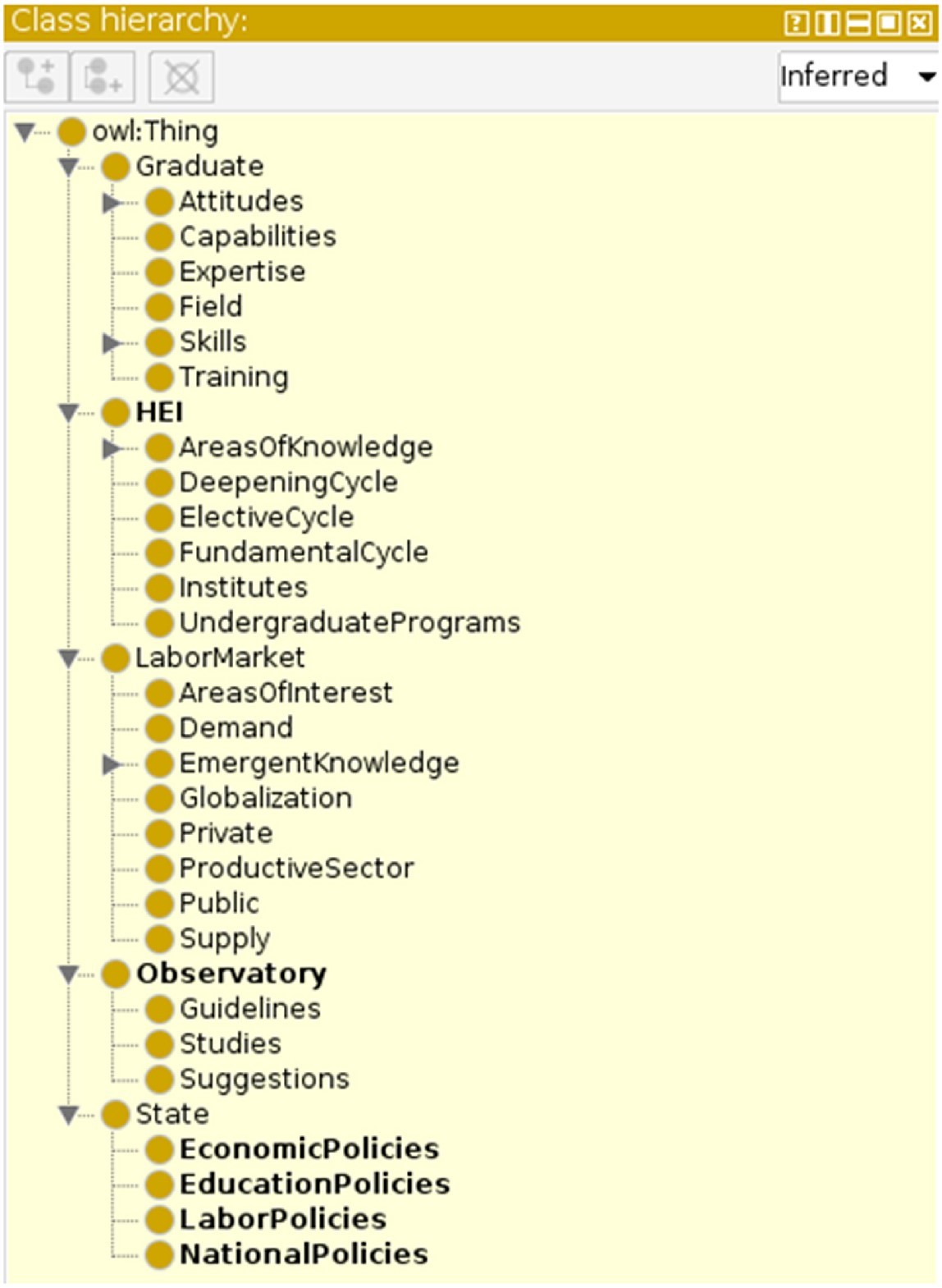

To begin with, it is possible to see that by making use of the knowledge mediator (reasoner), the extended classes of each ontology are reorganized in the inference view, explicitly showing that they are subclasses of their corresponding parent hierarchies (actors in the proposed model), see Figure 8.

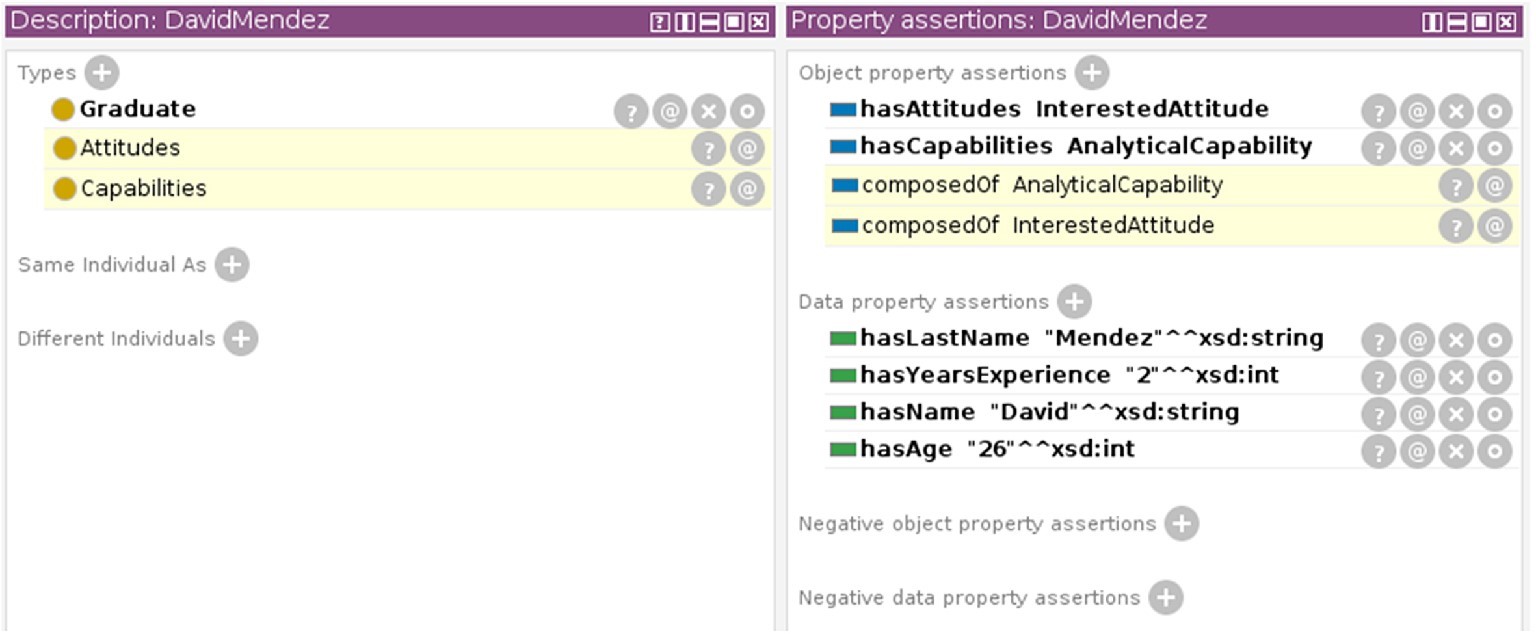

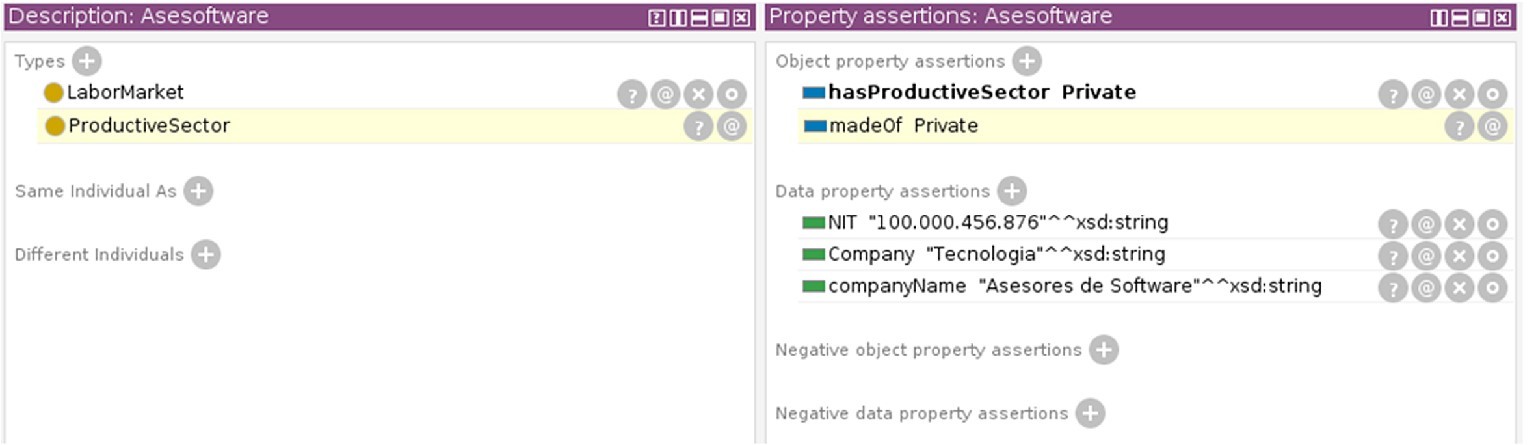

It is also possible to create instances of state policies, graduates, companies and HEIs, from a set of data (dataset) . In this way , through the observatory, it is sought to carry out studies, find possible suggestions to the involved actors and establish the guidelines with which it will act.

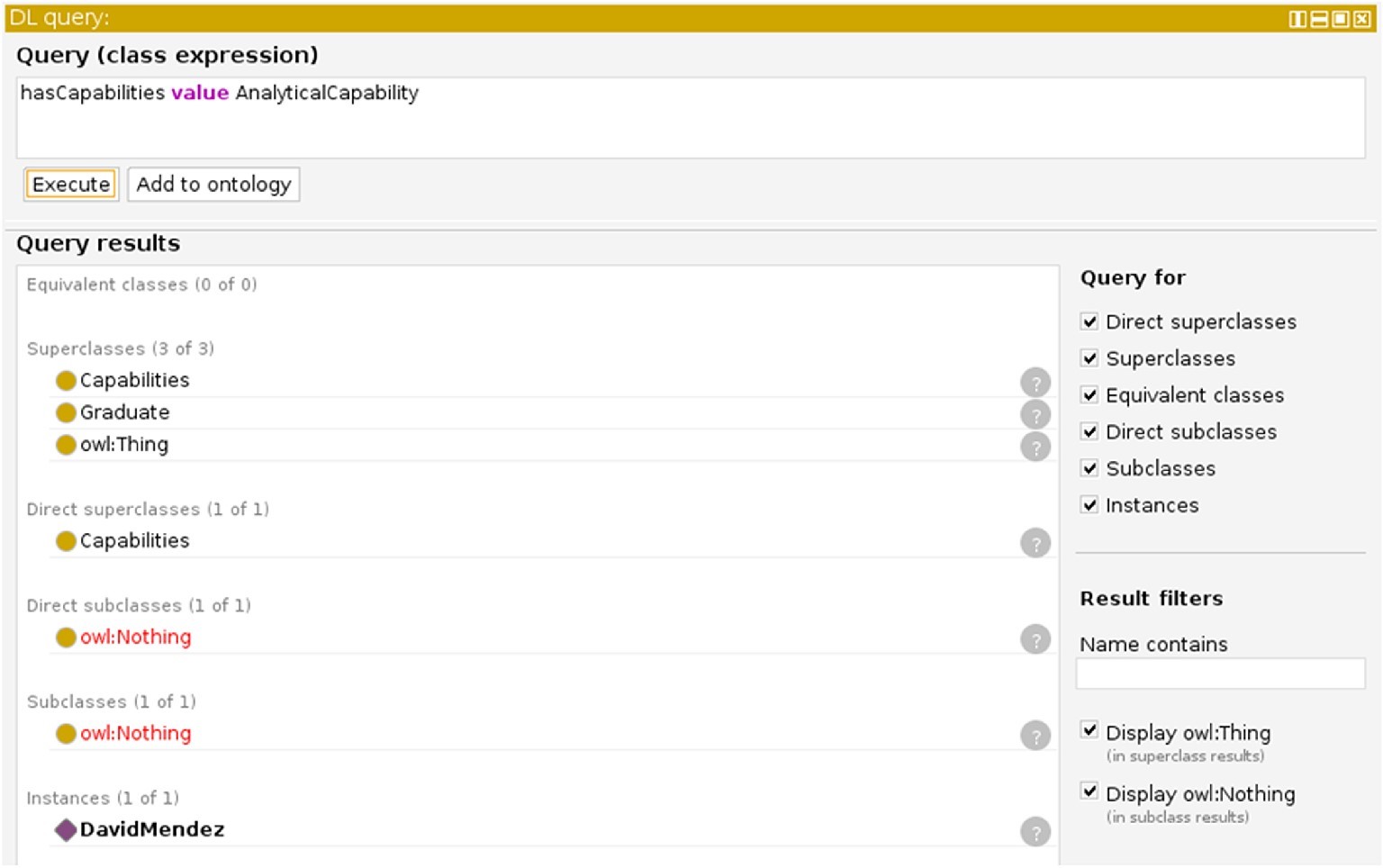

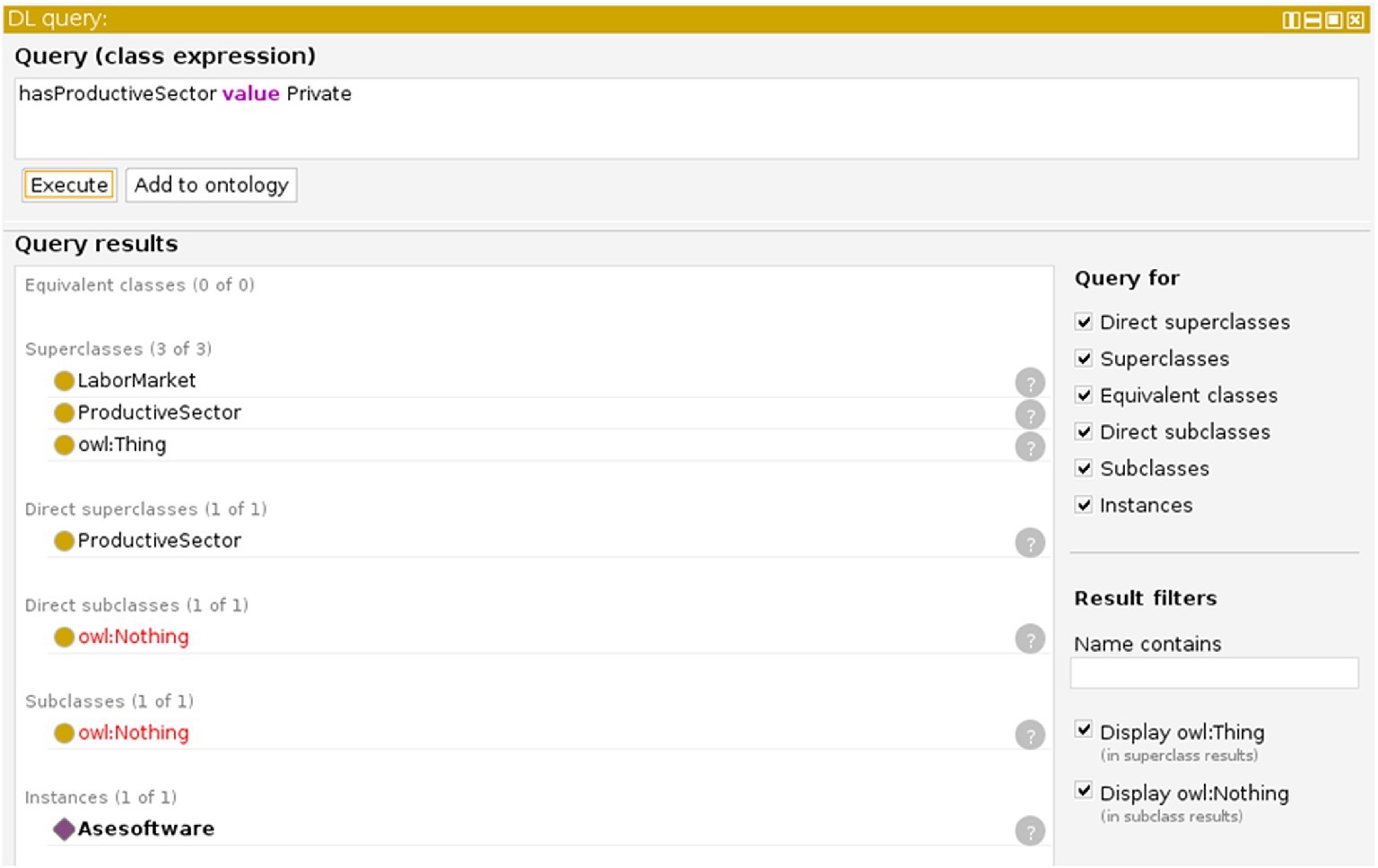

Finally, it is possible, through the query component (DL QUERY), to ask simple questions that verify the behavior of the instances created, in order to validate the correct definition of the ontology. Two examples will be shown below, the first corresponds to the instance of a graduate profile ( Figure 9), and the other to a company in the labor market ( Figure 10).

As indicated, to validate the instances, the reasoner is used with the examples proposed in Figures 11 and 12, in which, through the defined sentence, it is inferred that if a company seeks a profile with analytical capacity, it would obtain the instances of graduates with such an aptitude ; in this case “DavidMendez” . It is also possible that if a graduate is applying to a company that is looking for their particular skills and knowledge, the reasoner infers the instances of organizations in the private productive sector, in the case of the example: “Asesoftware”.

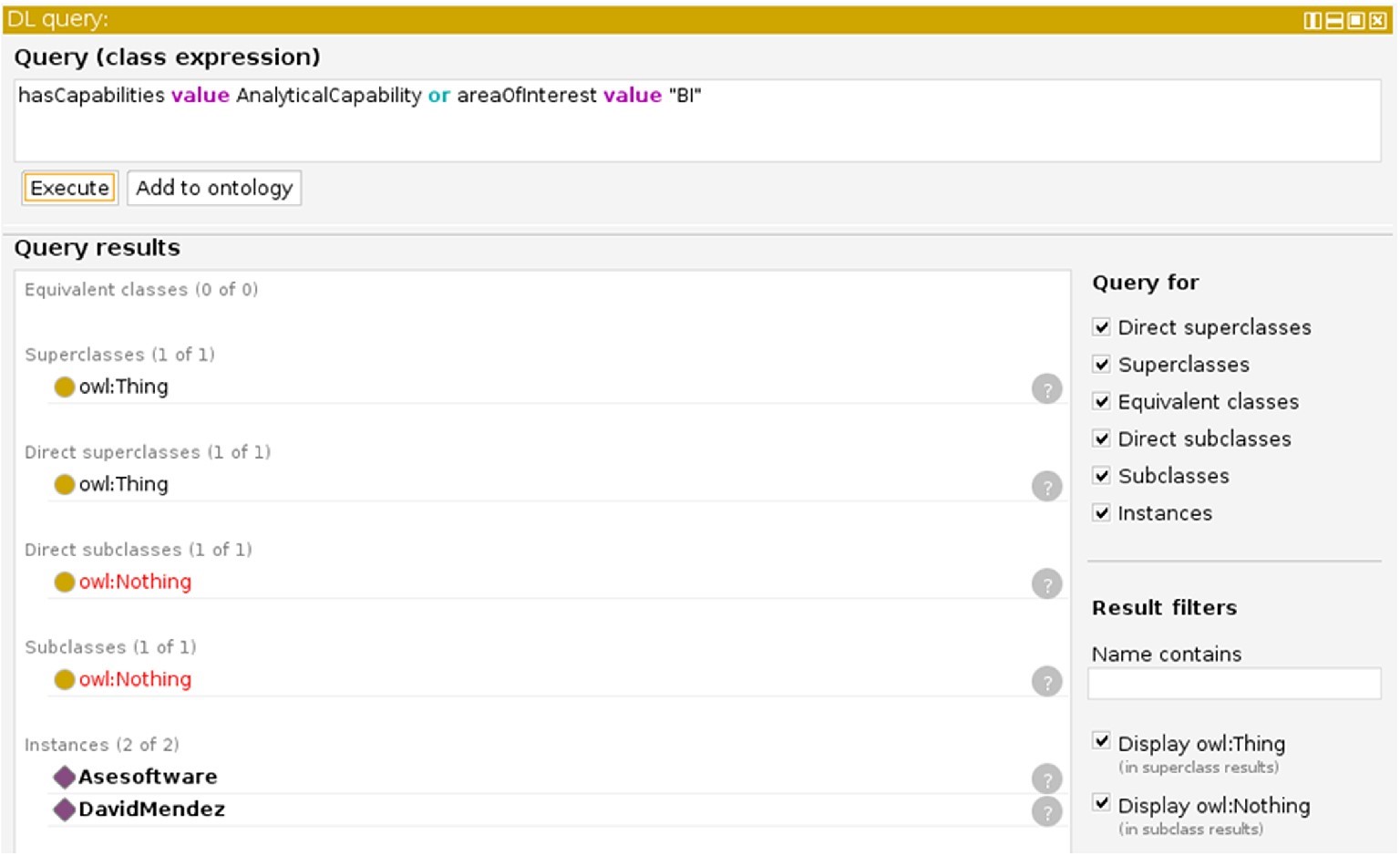

Finally, the validation between two characteristics of different actors is carried out; on the one hand, the area of interest of the company and, on the other, the aptitude of a graduate, which would be taken as a connection point between the actors as shown in Figure 13.

Two aspects are addressed below, which can generate controversy in the process of building the ontology.

To pigeonhole the word employability as a simple concept, where a person has the possibility of getting a job [9], is a reductionist vision and represents a bias to everything that happens at the moment in which they are employed. There are authors who delve into this topic [14][15][16] providing a more global opinion of the concept, where it can be interpreted that there are key elements to define employability. In this way, this article proposes the modeling of the actors involved in employability, based on these elements, and with contributions from more elaborate definitions, presented in [6][17].

The proposed model of knowledge management seeks to connect the concepts of the actors, in order to understand the repercussions that are mutually generated. These concepts, as shown in Figure 1, are defined by a taxonomy which can be seen in Figures 3, 4, 5, 6 and 7; where the characteristics of each actor are evidenced, thus giving rise to the corresponding taxonomy. In the case of graduates, the areas in which they were trained, the possible skills they would have and the experience obtained were taken into account ; the state was defined, taking into account its importance in the generation of policies that can affect other actors . In the HEI, the composition of the areas of knowledge and how they are organized depending on the institution was studied; for the labor market, the productive sectors, their supply and demand, as well as emerging knowledge within globalization were taken into account. Finally the observatory was considered, where the other actors interact generating knowledge through suggestions, guidelines and studies.

In practice, organizations use knowledge management models [18][19]; in this way proposing one based on ontologies is not new [18][29][30]. In this sense, the model presented seeks to give an input to the observatory ; not only so that it works in the development of its information system [31], but so that it serves in the construction of its processes and procedures, its vision, its mission, its stakeholders and other benefits that it can bring to the same.

Once the ontology was built according to the definition of the actors and their relationships, the validation (Section 3.2) was based on the use of the reasoner including a minimum sample of data (instances); thus, through the inference of the implemented rules and queries, it obtains specific information about an actor. In the validation, data were entered for instances of two different hierarchies, one as a graduate and the other as part of the labor market, where the characteristics that define them are reflected (Figures 9 and 10), and according to the reasoning, the inference between them is made by means of DL QUERY (Figures 11 and 12). To finish, a consultation was developed, which shows through the characterization of its concepts, the connection between two actors ( Figure 13). In this sense, the model allows us to observe how the actors can be related in the general ontology, thus validating its consistency. It should be clarified that said validation was carried out for the sample presented; however, it would work the same if one wanted to evaluate with a large amount of data.

Indeed, the general ontology highlights the way in which the actors involved in employability are related, it should be noted that the model has not been validated in real situations because it is necessary to have data on people, companies and to take into account the impact of legislation of the government on education and the labor market, which directly affect the graduate. A simple example of this is the measures taken in the collective confinement, within the health crisis caused by COVID-19, where the unemployment rate increased, the measures to the labor market had an impact on the purchasing power of employees, and the quality of education was affected; this will possibly affect future graduates.

When considering the proposed knowledge management model, through different actors, it is possible to achieve studies from a holistic perspective, where the employability observatory should constantly monitor the elements of the model raised in this research.

In the proposed model, the observatory fulfills the role of studying how the actors behave (Section 3.1); however, it must be taken into account that they change over time, very possibly leading to an update of the model. In this way, instances or objects closer to real life can be created.

The constant change in the behavior of the actors belonging to the proposed model, makes the general behavior of the model similar to that of Complex Adaptive Systems (CAS) . In this way, it is proposed as future work, validating with real data, as it is a complex system with interconnected and adaptive actors , continuously improving according to globalization and the challenges that arise in society, [37],[38], [39].
